I'll be using Photoshop CS6 here but this tutorial is also fully compatible with Photoshop CC (Creative Cloud). If you're using CS5 or earlier, you'll want to follow along with the original version of the tutorial.

Download our tutorials as print-ready PDFs! Learning Photoshop has never been easier!

And here's what the "colored dot pattern" effect will look like when we're done:

The final effect.

Here's the image I'll be working with (colorful sunglasses photo from Shutterstock):

The original image.

Let's get started!

Step 1: Convert The Background Layer Into A Smart Object

With the image newly opened in Photoshop, we see in the Layers panel that the image is sitting on the Background layer, currently the only layer in the document:

The Layers panel showing the photo on the Background layer.

Let's start by converting the Background layer into a Smart Object. That way, when we apply a filter to the layer, as we'll be doing in a moment, the filter will be applied as a fully editable Smart Filter. Go up to the Filter menu in the Menu Bar along the top of the screen and choose Convert for Smart Filters, which means "convert this layer into a Smart Object for me so I can apply filters to it as Smart Filters":

Going to Filter > Convert for Smart Filters.

A dialog box will pop open letting you know that Photoshop is about to convert the layer into a Smart Object. Click OK to close out of it:

Photoshop lets you know it's about to convert the layer into a Smart Object.

Nothing will happen to the image, but if we look again in the Layers panel, we see that a small Smart Object iconnow appears in the lower right of the layer's preview thumbnail. This tells us that the layer is now a Smart Object. Also notice that Photoshop has renamed the layer from Background to Layer 0. Normally, I'd want to rename the layer to something more meaningful, but in this case, the generic name is fine:

A Smart Object icon appears in the preview thumbnail.

Step 2: Add A Black Solid Color Fill Layer

Before we do anything more to the image itself, let's add a Solid Color fill layer to serve as the background color for the effect. Click on the New Fill or Adjustment Layer icon at the bottom of the Layers panel:

Clicking the New Fill or Adjustment Layer icon.

Choose Solid Color from the top of the list that appears:

Choosing a Solid Color fill layer.

Photoshop will pop open the Color Picker so we can select the color we want to fill the layer with. We need our background for the effect to be black, so choose black in the Color Picker, then click OK to close out of it:

Choosing black in the Color Picker.

Step 3: Drag The Solid Color Fill Layer Below The Image

Our new fill layer is currently sitting above Layer 0 which is why its blocking the image from view in the document. We need to move it below the image. To move it, click on the fill layer in the Layers panel and, with your mouse button still held down, drag it down below Layer 0. When you get close enough to the bottom edge of Layer 0, a highlight bar will appear:

Dragging the Solid Color fill layer below Layer 0.

Release your mouse button when you see the highlight bar. The fill layer will snap into place below Layer 0, making the image once again visible in the document. Of course, this now hides the fill layer from view, but don't worry, we'll be seeing it again a bit later:

The fill layer will now be the background for the effect.

Step 4: Select Layer 0

Click on Layer 0 in the Layers panel to select it and make it the active layer:

Selecting Layer 0.

Step 5: Apply The Mosaic Filter

To create the colored dot pattern for the effect, we first need to turn our image into a series of solid-colored squares, and we can do that using Photoshop's Mosaic filter. Go up to the Filter menu at the top of the screen, choosePixelate, then choose Mosaic:

Going to Filter > Pixelate > Mosaic.

This opens the Mosaic filter's dialog box. Keep an eye on your image in the document as you drag the Cell Sizeslider along the bottom of the dialog box left or right to increase or decrease the value. Larger values create larger squares. Smaller values, smaller squares. These squares will eventually become our colored dots so you'll want to set the value based on the size of the dots you'll want for your effect. This will depend a lot on the size of the image you're working with and may take a bit of trial and error to get it right (which is why we're applying the Mosaic filter as a re-editable Smart Filter). In my case, I'll set the value to 60 which I think works well for my image. It's very important that you remember the exact value you used here because you'll need it again in a moment:

Remember the value you chose for the cell size.

Click OK when you're done to close out of the Mosaic filter. Your image should now look very pixelated:

The image after applying the Mosaic filter.

Since we applied the Mosaic filter to a Smart Object, we can see it listed as a Smart Filter directly below the image in the Layers panel. If you want to try a different Cell Size value, simply double-click on the filter's name to re-open its dialog box and make your changes, then click OK to close out of it:

Smart Filters can be re-edited at any time by double-clicking on their name.

Step 6: Create A New Document

Next, we need to create our repeating dot pattern. For that, we'll set the image's document aside for a moment and create a brand new document. Go up to the File menu at the top of the screen and choose New:

Going to File > New.

This opens the New dialog box, and this is where you need to remember the value you used for your Cell Size option in the Mosaic filter. Enter that exact same value for both the Width and Height of the new document (in my case, it was 60) and set the measurement type for both to Pixels. This will create a document that matches the size of the squares in the image. Don't worry about the Resolution value but make sure Background Contents is set to White:

Creating a new Photoshop document that matches the Mosaic filter's cell size.

Click OK to close out of the dialog box. Your new document will appear on your screen (the dark gray border in the screenshot is just the pasteboard area surrounding the document). Since it's rather small, press and hold the Z key on your keyboard to temporarily switch to the Zoom Tool and click a few times inside the document to zoom in on it. Here, I've zoomed in to 500%. Release the Z key when you're done:

Press and hold Z and click repeatedly on the document to zoom in.

Step 7: Select The Elliptical Marquee Tool

To draw the round dot we'll need for our pattern, we'll use Photoshop's Elliptical Marquee Tool. By default, it's hiding behind the Rectangular Marquee Tool in the Tools panel, so to access it, click and hold on the Rectangular Marquee Tool, then select the Elliptical Marquee Tool from the fly-out menu:

Selecting the Elliptical Marquee Tool.

Step 8: Draw A Circular Selection

With the Elliptical Marquee Tool in hand, click in the very top left corner of the document and, with your mouse button still held down, drag diagonally downward to the bottom right corner. We need the selection outline to be in the shape of a perfect circle, so to force it into a circle, press and hold the Shift key on your keyboard as you're dragging your mouse. If you need to reposition the selection outline as you're drawing it to center it in the document, press and hold your spacebar, drag the selection outline into position with your mouse, then release your spacebar and continue dragging out the selection.

When you reach the bottom right corner of the document, release your mouse button, then release your Shift key (in that specific order - mouse button first, Shift key second) to keep the selection outline forced into a perfect circle. You should now have a circular selection as large as the document itself:

Press and hold Shift as you're drawing the selection to force it into a circle.

Step 9: Fill The Selection With Black

With the selection outline drawn, go up to the Edit menu at the top of the screen and choose Fill:

Going to Edit > Fill.

When the Fill dialog box appears, set the Use option at the top to Black, then click OK:

Setting the Use option to Black.

This fills the circular selection with black. To remove the selection outline from around the circle (since we don't need it anymore), either go up to the Select menu at the top of the screen and choose Deselect or press Ctrl+D (Win) /Command+D (Mac) on your keyboard:

The circular selection is now filled with black.

Step 10: Invert The Colors

At the moment, the circle itself is black and the area surrounding it is white. We actually need the opposite of that, which means we need to invert the colors. To do that, go up to the Image menu, choose Adjustments, then chooseInvert, or press Ctrl+I (Win) / Command+I (Mac) to select the Invert command from the keyboard:

Going to Image > Adjustments > Invert.

After inverting the colors, the circle is now white and surrounded by black:

The document after inverting the colors.

Step 11: Define The Circle As A Pattern

Now that we have our circle, or dot, we need to define it as a pattern. Go up to the Edit menu and choose Define Pattern:

Going to Edit > Define Pattern.

Give the new pattern a name in the Pattern Name dialog box. Since my document is 60x60 pixels, I'll name the pattern "Circle 60x60 px". You may end up creating more circle patterns, each with different dimensions, so it's a good idea to include the size of the document in the name. Click OK when you're done:

Naming the new pattern.

Step 12: Close The Circle's Document

We don't need the circle's document anymore, so to close it, go up to the File menu and choose Close, or pressCtrl+W (Win) / Command+W (Mac) on your keyboard. When Photoshop asks if you want to save the document, clickNo (Win) / Don't Save (Mac). This will leave just the image document open on your screen:

Going to File > Close.

Step 13: Add A Layer Mask To Layer 0

Back in the main image document, with Layer 0 selected, click on the Layer Mask icon at the bottom of the Layers panel:

Clicking the Layer Mask icon.

This adds a layer mask to the image layer. We can't see the mask in the document but we can see its newly-addedthumbnail to the right of the layer's main preview thumbnail. Notice also that the mask thumbnail has a whitehighlight border around it which tells us that the mask, rather than the layer itself, is currently selected:

The layer mask thumbnail.

Step 14: Fill The Mask With The Circle Pattern

With the mask selected, go up to the Edit menu and once again choose Fill. This time when the Fill dialog box appears, set the Use option at the top to Pattern, then click on the little thumbnail to the right of the words Custom Pattern:

Setting Use to Pattern and clicking the Custom Pattern thumbnail.

This will open the Pattern Picker showing thumbnails of all the patterns currently available to choose from. Select the circle pattern you created earlier by clicking on its thumbnail. It will be the last thumbnail in the list:

Selecting the circle pattern.

Once you've selected your pattern, click OK to close out of the Fill dialog box. Photoshop fills the layer mask with the circle pattern, creating our initial colored dots effect:

The effect after filling the mask with the circle pattern.

I'll zoom in a bit closer to the image so we can get a better look at what's happening. Each dot in the effect is made up of a single solid color thanks to the Mosaic filter we applied earlier, while the black area surrounding each dot is from the Solid Color fill layer sitting below the image:

The effect up close.

Trying Different Size Dots (Optional)

At this point, if you think a smaller or larger dot pattern would look better with your image, here's what you do. First, with the layer mask still selected, go back up to the Edit menu, choose Fill, then set the Use option to White and click OK. This will fill the mask with white, clearing away the circle pattern. Then, double-click on the Mosaic Smart Filter's name under Layer 0 in the Layers panel to re-open its dialog box. Change the Cell Size value with the slider, remembering the value you used, and click OK. Go back to Step 6 to create a new document with the same dimensions as your new Cell Size value, then repeat Steps 7 - 12 to create a new pattern at the new size. Skip Step 13 because you've already added the layer mask. Jump right to Step 14 to fill the mask with the new pattern.

Step 15: Add A Stroke Around The Dots

With the initial effect now complete, you could stop here if you wanted to, but there's a few more things we can do to enhance it further. First, to really bring out the dots, we can add a stroke around them. With the layer mask still selected, click on the Layer Styles icon (the fx icon) at the bottom of the Layers panel:

Clicking the Layer Styles icon.

Choose Stroke from the list that appears:

Choosing a Stroke layer effect.

This opens the Layer Style dialog box set to the Stroke options in the middle column. Leave the stroke set to its default color of black, but lower the Size down to 1 px and change the Position to Inside:

The Stroke options.

Click OK to close out of the dialog box. Each dot now has a thin black stroke outlining it, making them stand out a bit more:

The effect with a stroke applied to the dots.

If you want to compare the effect with and without the stroke to see which version you like better, just click the littleeyeball icon to the left of the Stroke effect in the Layers panel to toggle it on and off:

Clicking the Stroke visibility icon.

Step 16: Increase Color Saturation With A Hue/Saturation Adjustment

Next, we can bring out the colors in the effect by increasing color saturation. Click on the New Fill or Adjustment Layer icon at the bottom of the Layers panel:

Clicking the New Fill or Adjustment Layer icon.

Choose a Hue/Saturation adjustment layer from the list:

Adding a Hue/Saturation adjustment layer.

The controls for the Hue/Saturation adjustment layer appear in the Properties panel. Increase the Saturation value to around +20 by dragging the slider towards the right:

Increasing the Saturation value with the slider.

The colors now look richer and more intense:

The effect after increasing color saturation.

Step 17: Brighten The Image With A Levels Adjustment Layer

Finally, one potential drawback with this effect is that it tends to darken the overall image, but we can brighten it back up. Click once again on the New Fill or Adjustment Layer icon at the bottom of the Layers panel and this time, choose Levels:

Adding a Levels adjustment layer.

Don't worry about changing any settings for it in the Properties panel. Instead, all we need to do is change the blend mode of the Levels adjustment layer from Normal to Screen. You'll find the blend mode option in the upper left of the Layers panel. This will make the image too bright, so lower the Opacity value directly across from the blend mode option down to around 25%:

Changing the blend mode and opacity of the Levels adjustment layer.

Related tutorial: Photoshop's Five Essential Blend Modes For Photo Editing

And with that, we're done! Here, after brightening up the image, is my final "photo to colored dots" effect:

The final result.

Turn A Photo Into A Pattern Of Colored Dots With Photoshop

I'll be using Photoshop CS6 here but this tutorial is also fully compatible with Photoshop CC (Creative Cloud). If you're using CS5...

Turn A Photo Into A Pattern Of Colored Dots With Photoshop

0

Color Grid Photo Display Effect With Photoshop

This version of the tutorial has been updated for Photoshop CS6 and is also fully compatible with Photoshop CC (Creative Cloud). For CS5 and earlier, you'll want to check out our original Color Grid Design tutorial.

Download our tutorials as print-ready PDFs! Learning Photoshop has never been easier!

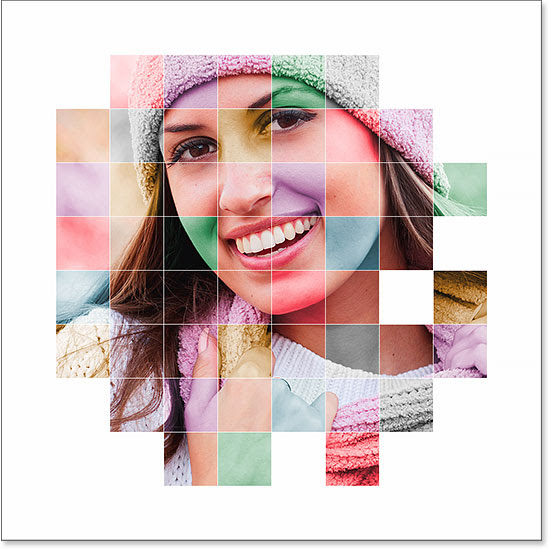

And here's how the color grid design will look when we're done. Of course, you can use whichever colors you like for your effect. This is just one example:

The final effect.

Here's the image I'll be working with (woman with winter clothing photo from Shutterstock):

The original image.

Let's get started!

Step 1: Create A New Photoshop Document

Let’s begin by creating a new document for the grid. Go up to the File menu in the Menu Bar along the top of the screen and choose New:

Going to File > New.

This opens Photoshop’s New dialog box. This effect works best with a square-shaped document, so for this tutorial, I'll set both my Width and Height values to 1000 Pixels. Of course, feel free to replace my values with whatever dimensions you need, but again, you'll want a square document for the best results. I'm not planning on printing this (it will be strictly for on-screen viewing) so there's no need to worry about the Resolution value (I'll leave it set to its default of 72 pixels/inch), but if you are creating this effect for print, you’ll most likely want to create a document larger than 1000 x 1000 pixels and you'll want to set your resolution to around 240 pixels/inch or higher. Click OK when you’re done to close out of the dialog box. The new document will appear on your screen:

Creating a new Photoshop document with the New dialog box.

Step 2: Turn On Photoshop's Grid

Next, we'll turn on Photoshop's built-in grid so we can use it as a guide for creating our pixel-based grid. To turn the grid on, go up to the View menu at the top of the screen, choose Show, then choose Grid:

Going to View > Show > Grid.

The grid will appear as an overlay on top of your document. We'll make some changes to the appearance of the grid next:

The document after turning on Photoshop's grid.

Step 3: Adjust The Number Of Grid Lines

We can adjust the number of lines and sections in the grid using Photoshop's Preferences. If you're running Photoshop on a Windows PC, go up to the Edit menu at the top of the screen, choose Preferences, then chooseGuides, Grid & Slices. On a Mac, go up to the Photoshop menu, choose Preferences, then choose Guides, Grid & Slices:

Selecting the Guides, Grid & Slices preferences.

This opens the Preferences dialog box set to the Guides, Grid and Slices preferences. In the Grid section, change theGridline Every option to 10 Percent, which will give us a 10x10 grid, and change the Subdivisions value to 1 to prevent the grid from being subdivided into smaller sections. Keep an eye on the grid in the document and you'll see a live preview of the changes as you're making them:

Setting Gridline Every to 10 Percent and Subdivisions to 1.

Click OK when you're done to close out of the Preferences dialog box. You should now see a grid 10 sections wide and 10 sections tall. It's important to note that this grid isn't actually part of the document. It's simply a visual guide that we'll be using to help us make our own pixel-based grid, as we'll be doing in a moment:

The grid after changing the options in the Preferences.

Step 4: Add A New Blank Layer And Name It "Grid"

Let's add a new blank layer to hold the pixel-based grid we're about to create. Press and hold the Alt (Win) / Option(Mac) key on your keyboard and click the New Layer icon at the bottom of the Layers panel:

Clicking the New Layer icon while holding Alt (Win) / Option (Mac).

This opens the New Layer dialog box, giving us a chance to name the new layer before it's added. Name the layer "Grid", then click OK to close out of the dialog box:

Naming the new layer.

Nothing will happen in the document itself, but we can see in the Layers panel that Photoshop has added the new "Grid" layer above the Background layer:

The Grid layer appears in the Layers panel.

Step 5: Select The Single Row Marquee Tool

To create our grid, we'll use two of Photoshop's very basic and rarely-used selection tools - the Single Row Marquee Tool and the Single Column Marquee Tool. We'll start with the Single Row Marquee Tool. By default, both of these tools are nested behind the Rectangular Marquee Tool, so click and hold on the Rectangular Marquee Tool near the top of the Tools panel until a fly-out menu appears showing you the other tools available in that same spot, then choose the Single Row Marquee Tool from the menu:

Click and hold on the Rectangular Marquee Tool, then select the Single Row Marquee Tool.

Step 6: Click On Each Horizontal Grid Line

As it’s name implies, the Single Row Marquee Tool will select a single horizontal row of pixels in the document. That's it, that's all it does. To use it, we just need to click anywhere in the document and Photoshop will automatically select the pixel we clicked on, plus every other pixel in that row from left to right. We’re going to use the tool to convert the horizontal grid lines into a series of selection outlines. First, move your cursor directly over the top horizontal grid line, then click with your mouse. You’ll see a 1-pixel thick selection outline appear along the grid line. I've circled the spot where I clicked but clicking anywhere on the line will give you the exact same result. If you notice that your click wasn't directly over the grid line, just press Ctrl+Z (Win) / Command+Z (Mac) on your keyboard to undo it and try again:

Click anywhere on the first horizontal grid line at the top to select the entire row of pixels.

Next, we'll add the rest of the horizontal grid lines to our selection. Press and hold the Shift key on your keyboard and click on the next grid line below it. This will select a second horizontal row of pixels, and because we had the Shift key held down, Photoshop will add this second selection to the first. Continue holding down your Shift key while clicking on the rest of the horizontal grid lines until a selection outline appears along each of them. When you're done, you should see nine selection rows in total. Make sure you keep your Shift key held down as you click on each one, otherwise you’ll just replace the previous selection with the new one:

Press and hold Shift and click on each horizontal grid line to add it to the selection.

Step 7: Switch To The Single Column Marquee Tool

We need to do the same thing now with the vertical grid lines, which means we need to switch to the Single Column Marquee Tool. Click and hold on the Single Row Marquee Tool in the Tools panel (it will appear where the Rectangular Marquee Tool icon appeared earlier) until the fly-out menu appears, then choose the Single Column Marquee Tool from the menu:

Click and hold on the Single Row Marquee Tool, then select the Single Column Marquee Tool.

Step 8: Click On Each Vertical Grid Line

The Single Column Marquee Tool acts the same way as the Single Row Marquee Tool, the only difference being that it selects columns of pixels (top to bottom) rather than rows, with each column being 1 pixel wide. Press and hold your Shift key and click on each of the vertical grid lines from left to right until they're all selected. When you're done, you should see selection outlines along every grid line, both horizontal and vertical:

All horizontal and vertical grid lines have been added to the selection.

Step 9: Fill The Selection With Black

We'll create our grid by filling the horizontal and vertical selections with black. Go up to the Edit menu at the top of the screen and choose Fill:

Going to Edit > Fill.

This opens Photoshop's Fill dialog box. Set the Use option at the top to Black, then click OK:

Setting the Use option to Black.

Photoshop fills the selection with black, although it may be hard to see with the selection outlines and Photoshop's own grid in the way. To remove the selection outlines (since we don't need them anymore), go up to the Select menu at the top of the screen and choose Deselect:

Going to Select > Deselect.

Then, to turn off Photoshop's grid, go up to the View menu, choose Show, then once again choose Grid. A checkmark to the left of the word Grid means it's currently turned on. Selecting it again will remove the checkmark and turn the grid off:

Going to View > Show > Grid.

With the selection outlines and Photoshop's grid removed, we can see our black grid in the document:

The document showing the newly created grid.

Step 10: Open The Photo You Want To Display In The Grid

Open the photo you'll be displaying inside the grid. The photo will open in its own tabbed document. Here's the photo I'm using:

Your photo will open in a separate tabbed document.

Step 11: Select And Copy The Photo

At the moment, our grid is in one document and our photo is in another. We need to move the photo into the same document as the grid. To do that, first select the photo by going up to the Select menu at the top of the screen and choosing All:

Going to Select > All.

A selection outline will appear around the edges of the photo. Then, go up to the Edit menu at the top of the screen and choose Copy:

Going to Edit > Copy.

Step 12: Switch Over To The Grid Document

Switch over to the grid document by clicking on its tab just below the Options Bar at the top. In my case, the document is named simply "Untitled-1":

Switching from the photo's document to the grid document.

Step 13: Select The Background Layer

With the grid document open, click on the Background layer in the Layers panel to select it. This way, when we paste the photo into the document, Photoshop will place it on a new layer directly between the Background layer and the Grid layer:

Selecting the Background layer.

Step 14: Paste The Photo

Go up to the Edit menu, choose Paste Special, then choose Paste in Place:

Going to Edit > Paste Special > Paste in Place.

Photoshop pastes and centers the photo into the grid document. In my case (and most likely yours as well) the photo will need to be resized, but we'll fix that next:

The photo has been pasted into the grid.

If we look in the Layers panel, we see that Photoshop has added the photo on its own layer between the Background and Grid layers, just as we planned:

The photo appears between the Background and Grid layers.

Unfortunately, Photoshop gave the new layer a generic name ("Layer 1"), so before we continue, let's rename it.Double-click directly on its name to highlight it, then enter "Photo" as the new name. Press Enter (Win) / Return(Mac) on your keyboard when you're done to accept the name change:

The layer's name has been changed from "Layer 1" to "Photo".

Step 15: Convert The Photo Layer Into A Smart Object

In a moment, we'll resize the photo so it fits better within the grid, but before we do, let's quickly convert its layer into a Smart Object. That way, if we decide to resize it again later, we won't lose any of the photo's image quality. With the Photo layer selected, click on the small menu icon in the upper right corner of the Layers panel:

Clicking the menu icon.

Choose Convert to Smart Object from the menu that appears:

Choosing "Convert to Smart Object" from the Layers panel menu.

Nothing will seem to have happened in the document, but a small Smart Object icon appears in the lower right corner of the layer's preview thumbnail in the Layers panel. This tells us the layer is now a Smart Object:

The layer preview thumbnail showing the Smart Object icon.

Step 16: Resize The Photo With Free Transform

To resize the photo, we'll use Photoshop's Free Transform command. Go up to the Edit menu at the top of the screen and choose Free Transform:

Going to Edit > Free Transform.

This places the Free Transform bounding box and handles around the image. If you can’t see the handles because the edges of your photo extend beyond the viewable area in the document, go up to the View menu and choose Fit on Screen:

Going to View > Fit on Screen.

Photoshop will instantly zoom the image out far enough so that everything, including the Free Transform handles, fits inside the viewable area of the document. To resize the photo, press and hold your Shift key, then click on any of the four corner handles and drag them. Holding the Shift key down as you drag will maintain the original aspect ratio of the image so you don’t accidentally distort the look of it. If you want to resize the photo from its center rather than from a corner, press and hold Shift+Alt (Win) / Shift+Option (Mac) as you drag any of the corner handles. If you need to move the image around inside the document, click anywhere inside the Free Transform bounding box and drag it into place. When you’re done, press Enter (Win) / Return (Mac) to accept the transformation and exit out of the Free Transform command:

Dragging a corner handle to resize the image inside the grid.

If you zoomed the image out a moment ago using the Fit on Screen command and want to zoom back in now that you’re done resizing the image, go back up to the View menu and choose 100%:

Going to View > 100%.

Related Reading: Zooming And Panning In Photoshop

Download our tutorials as print-ready PDFs! Learning Photoshop has never been easier!

Step 17: Select The Grid Layer

At this point, the hard work is done. We’ve created our grid, we’ve copied and pasted our photo into the grid’s document, and we’ve resized and moved the photo into position. We’re ready to have some fun colorizing the grid! First, click on the Grid layer in the Layers panel to select it:

Selecting the Grid layer.

Step 18: Select The Magic Wand Tool

To colorize the grid, we need a way to select the individual squares, and we can do that easily using Photoshop’sMagic Wand Tool. By default, the Magic Wand Tool is nested behind the Quick Selection Tool in the Tools panel, so click and hold on the Quick Selection Tool until a fly-out menu appears, then choose the Magic Wand Tool from the menu:

Click and hold on the Quick Selection Tool, then choose the Magic Wand Tool.

Step 19: Select The Outer Edge Squares

To select a square in the grid, make sure you have the Grid layer selected in the Layers panel (very important!), then simply click inside the square with the Magic Wand Tool. A selection outline will appear around the outer edges of the square. To then add additional squares to the selection, press and hold your Shift key and click inside more squares. You'll select each new square you click inside of, and the selection will be added to the previously-selected squares. Let’s begin by selecting all the squares around the outer edge of the grid. First, click inside the square in the top left corner of the grid. A selection outline will appear around it. To make it easier to see which square I’ve selected, I’ve colorized it in yellow in the screenshot. This isn’t part of the effect; it’s just to make it easier to see which square is selected:

The square in the top left corner of the grid is selected.

Next, press and hold your Shift key and continue clicking with the Magic Wand Tool inside each of the squares around the outer edges of the grid to add them all to the selection. Again, I've colorized the selected squares in yellow here just to make things easier to see in the screenshot. The yellow is not part of the actual effect so don't worry that you're not seeing it in your document:

All squares around the outer edges of the grid are now selected.

I’m going to add a few more squares to my selection as well by again pressing and holding my Shift key and clicking inside them to add them to the previously-selected squares:

My initially selected squares.

Step 20: Add A New Layer Below The Grid Layer

We’ll fill these initial squares with white, which will create a border for the effect. Press and hold Ctrl+Alt (Win) /Command+Option (Mac) on your keyboard and click on the New Layer icon at the bottom of the Layers panel:

Clicking the New Layer icon while holding Ctrl (Win) / Command (Mac).

This pops open the New Layer dialog box. Name this new layer "White", then click OK:

Naming the new layer "White".

Photoshop adds a new blank layer named "White" between the Grid and Photo layers:

The Layers panel showing the new White layer.

Step 21: Fill The Selection With White

Go up to the Edit menu at the top of the screen and once again choose the Fill command. This time, when the Fill dialog box appears, change the Use option to White, then click OK:

Setting the Use option to White.

Photoshop fills the selected squares with white. To remove the selection outline from around the squares, go up to the Select menu and choose Deselect or just press Ctrl+D (Win) / Command+D (Mac) on your keyboard:

A border of white squares now appears around the image.

Step 22: Select The Grid Layer Once Again

Let’s select a few different squares to colorize. First, we need have the Grid layer active in the Layers panel, so click on it to select it. Remember, you always need the Grid layer selected before you can select any squares:

Make sure you select the Grid layer before trying to select any squares.

Step 23: Select Different Squares

With the Grid layer once again active, press and hold your Shift key and click inside other random squares with the Magic Wand Tool to select them. If you change your mind and want to remove a square from the selection, release the Shift key and press and hold your Alt (Win) / Option (Mac) key, then click inside the square to deselect it. Here, I've selected a few more squares (and colored them yellow so we can see which ones I've selected):

Press and hold Shift and click inside a few different squares to select them.

Step 24: Select The Photo Layer

With your squares selected, click on the Photo layer (the Smart Object) in the Layers panel to select it:

Selecting the Photo layer.

Step 25: Colorize The Squares With A Hue/Adjustment Layer

We'll colorize these squares using a Hue/Saturation adjustment layer. Click on the New Adjustment Layer icon at the bottom of the Layers panel:

Clicking the New Adjustment Layer icon.

Choose Hue/Saturation from the list that appears:

Choosing a Hue/Saturation adjustment layer.

The controls and options for the Hue/Saturation adjustment layer will appear in Photoshop's Properties panel. First, select the Colorize option by clicking inside its checkbox. Then, choose the color you want to colorize the selected squares with by dragging the Hue slider. For these squares, I’m actually going to leave the Hue slider set all the way to the left (its default position) which gives me red. Of course, you can choose whichever color you like. Once you've chosen a color with the Hue slider, you can adjust its saturation to your liking by dragging the Saturation slider left or right. For my red color, I'm going to set my Saturation value to around 50. Keep an eye on your document as you drag the sliders to preview the results:

Click the Colorize option, then choose a color with the Hue and Saturation sliders.

Step 26: Change The Adjustment Layer's Blend Mode To Color

If we look in the Layers panel, we see the adjustment layer sitting directly above the Photo layer. Make sure it’s selected (highlighted in blue), then go up to the Blend Mode option at the top of the Layers panel and change its blend mode from Normal (the default mode) to Color. This allows us to change only the colors in the image, not the brightness values:

Changing the blend mode of the adjustment layer to Color.

Here's my document after colorizing the squares with red:

The first of the colorized squares.

Step 27: Rename The Adjustment Layer

Since we'll be using multiple Hue/Saturation adjustment layers to colorize the grid, let's keep track of which one is being used for which color by renaming them. Since I've used this first Hue/Saturation layer for red, I'll double-clickon its name in the Layers panel and change its name from the generic "Hue/Saturation 1" to "Red". Press Enter(Win) / Return (Mac) on your keyboard to accept the name change:

Renaming the Hue/Saturation adjustment layer based on the color.

Step 28: Select And Colorize More Squares

Repeat steps 22-27 to select and colorize more squares. First select the Grid layer in the Layers panel, then press and hold your Shift key and click inside a few squares with the Magic Wand Tool to select them. Click on the Photolayer in the Layers panel to select it, then click on the New Adjustment Layer icon and choose Hue/Saturation. In the Properties panel, check the Colorize option, then choose a color with the Hue slider and a saturation level with the Saturation slider. Change the blend mode of the new adjustment layer to Color, then rename the adjustment layer based on the color you chose.

You can also use a Hue/Saturation adjustment layer to completely desaturate some of the squares, leaving them black and white. To do that, select some squares, then add a Hue/Saturation adjustment layer as you normally would, but rather than choosing a color with the Hue slider, simply drag the Saturation slider all the way to the left (to a value of -100), which will remove all the color:

Dragging the Saturation slider all the way to the left will turn the selected squares black and white.

Here's my result after selecting and colorizing more of the squares. I've used six Hue/Saturation adjustment layers in total — one for red (hue:0, saturation:50), yellow (hue:40, saturation:50), green (hue:120, saturation:20), blue(hue:200, saturation:20), and purple (hue:300, saturation:20), plus one for black and white (saturation:-100):

The effect after colorizing more of the squares.

And here, we can see all six of my Hue/Saturation adjustment layers in the Layers panel, each one named according to its color:

The Layers panel showing the adjustment layers.

Step 29: Change The Color Of The Grid Lines To White

Now that we've colorized our squares, let's change the appearance of the grid lines themselves, first by changing their color from black to white. Click on the Grid layer in the Layers panel to select it:

Clicking the Grid layer to select it.

Then, click the Lock Transparent Pixels icon just below the Blend Mode option at the top of the Layers panel:

Clicking the Lock Transparent Pixels icon.

With the Lock Transparent Pixels option enabled, anything we do to the layer will affect only the grid lines themselves. It will have no effect on the transparent areas of the layer. This way, if we fill the layer with, say, white (as we're about to do), only the grid lines will be filled with white. The transparent areas will remain transparent.

Go up to the Edit menu and once again choose Fill. When the Fill dialog box appears, the Use option should already be set to White since that’s what we set it to last time, so just click OK to close out of the dialog box:

Leave the Use option set to White and click OK.

Photoshop fills the grid lines with white:

The effect after changing the color of the grid lines to white.

Step 30: Add A Stroke Layer Style

If you want to increase the thickness of the grid lines, click on the Layer Styles icon (the "fx" icon) at the bottom of the Layers panel:

Clicking the Layer Styles icon.

Choose Stroke from the list that appears:

Choosing a Stroke layer style.

This opens Photoshop's Layer Style dialog box set to the Stroke options in the middle column. First, let's change the color of the stroke to white. Click on the color swatch to the right of the word Color:

Clicking the color swatch in the Stroke options.

This opens the Color Picker. Choose white as the new color for the stroke, then click OK to close out of it:

Choosing white in the Color Picker.

With white now as the stroke color, set the Position option to Outside, then adjust the width of the stroke by dragging the Size slider. You probably won't want to increase the size very much. I'm going to set mine to 2 px:

Setting Position to Outside and the Size to 2 px.

Click OK when you're done to close out of the Layer Style dialog box. Here's my effect with the white and slightly wider grid lines:

The image after applying the Stroke layer style.

Step 31: Move And Resize The Photo Again If Needed

At this point, now that the grid design is complete, you may decide that you need to resize and/or reposition the photo. In my case, I think I'm pretty happy with the way things look, but if you do need to move or resize your photo, click on the Photo layer in the Layers panel to select it:

Reselecting the Photo layer.

Then, simply use the same steps we covered back in Step 16 to resize and/or move the image. First, go up to theEdit menu and choose Free Transform (or press Ctrl+T (Win) / Command+T (Mac) on your keyboard) to bring up the Free Transform box and handles around the photo. If you can't see the handles because your photo extends beyond the visible area of the document, go up to the View menu and choose Fit on Screen (or press Ctrl+0 (Win) /Command+0 (Mac) on your keyboard). Press and hold Shift while clicking and dragging any of the corner handlesto resize the photo, or press and hold Shift+Alt (Win) / Shift+Option (Mac) to resize the photo from its center rather than from a corner. To move the photo, simply click and drag anywhere inside the Free Transform box. I'm going to drag my photo downward just a little bit, but I'll leave the size the same as it was before:

Re-adjust the size and position of the photo (if needed) with Free Transform.

Note that because we converted the photo into a Smart Object way back in Step 15, we can safely resize it again without any loss in image quality. When you're happy with the final size and position of your image, press Enter (Win) / Return (Mac) to accept it and close out of the Free Transform command. Then, to zoom back in on the image, go up to the View menu and choose 100% (or press Ctrl+1 (Win) / Command+1 (Mac) on your keyboard):

The final size and position of the photo.

Step 32: Crop The Image (Optional)

This final step is optional, but if you want to crop away some of the white border around the grid, select Photoshop'sCrop Tool from the Tools panel:

Selecting the Crop Tool.

With the Crop Tool selected, set the Aspect Ratio option on the left of the Options Bar to Original Ratio:

Setting the Aspect Ratio option to Original Ratio.

You'll see a cropping border appear around the edges of the document, with crop marks on all four sides and in the corners. Press and hold the Alt (Win) / Option (Mac) key on your keyboard as you click and drag any of the fourcorner crop marks inward to crop away some of the white border:

Color Grid Photo Display Effect With Photoshop

Color Grid Photo Display Effect With Photoshop This version of the tutorial has been updated for Photoshop CS6 and is also fully comp...

Color Grid Photo Display Effect With Photoshop

0
